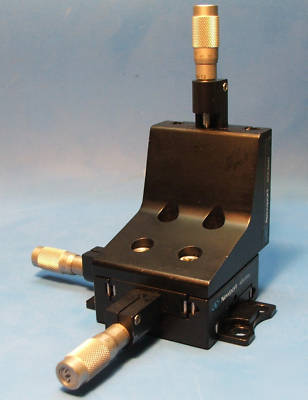

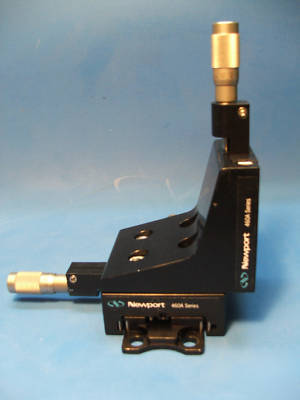

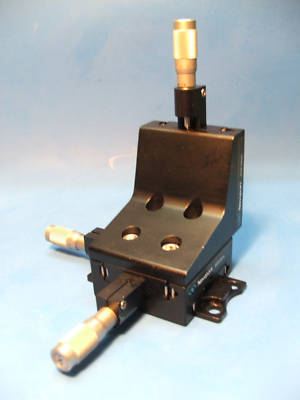

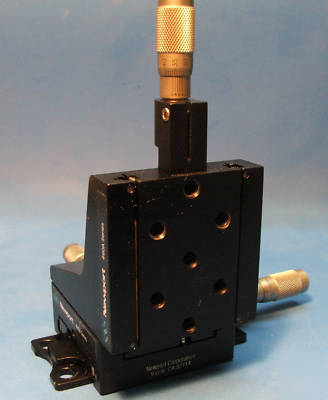

New port 460A xyz stage with 3 newport micrometers
* Load Capacity, Vertical [lb (N)] = 15 lb (67 N)
* Drive Location = Center Drive
* Special Features = Low Profile
* Angular Deviation = <150 rad
Here is a link to Newport's website:
http://search.newport.com/?q=*&x2=sku&q2=460A-XYZ
Here is what Newport's website has to say about it:
The 460A-XYZ 0.5 inch (12.7mm) Travel 3 Axis Low-Profile Integrated Ball Bearing Linear Stages has an integrated, yet modular, design allowing for increased versatility. The Z Axis Stage/Bracket is user removable allowing conversion of an XYZ Model to an XY Model. The 460A-XYZ features all aluminum construction with hardened ball bearings running along opposing pairs of polished and hardened stainless steel rods. This offers exceptional straightness of travel, but a lower load capacity than our crossed-roller bearing stages. The stages are spring loaded against the drive actuator for backlash free motion. Vertical-drive assemblies carry the load through the actuator spindle rather than the springs for positive load support. Three actuators are required and are ordered separately.
