5 ton v&o high-speed notching press #25327

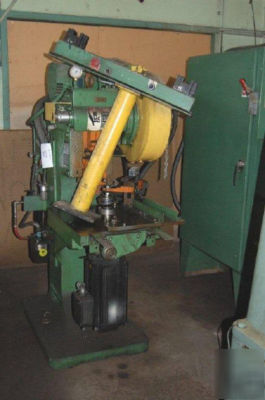

5 TON V&O HIGH-SPEED NOTCHING PRESS
New 1963, Serial No 410-774, Model 410
Tonnage Capacity, Nominal............... 5 TON
Stroke Length........................... 1"
Shut Height to Bed, (SDAU).............. 8.5"
Ram Adjustment.......................... 1.5"
Ram Area, L-R x F-B..................... 4.125" x 5"
Bolster Thickness....................... 2"
Throat Depth............................ 9"
Shank Hole in Ram, Diameter x Depth..... 1.5" x 2.5"
Strokes per Minute, Variable............ 250 to 750 SPM
Main Drive Motor, Horsepower............ 5 HP/1140 RPM
Weight, Approximately................... 1600 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $7,950.00
