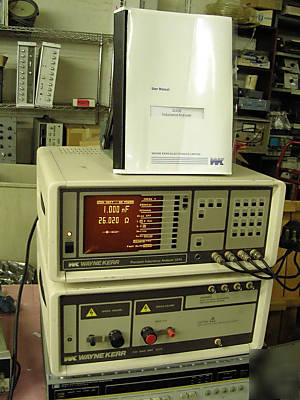

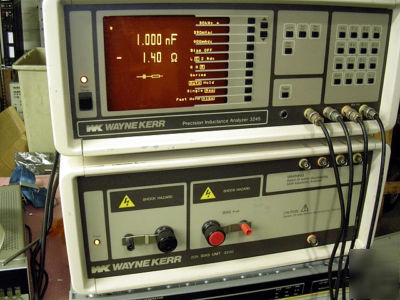

Wayne kerr 3245 with 3220 inductance analyzer and bias

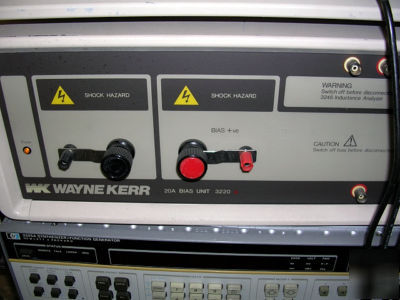

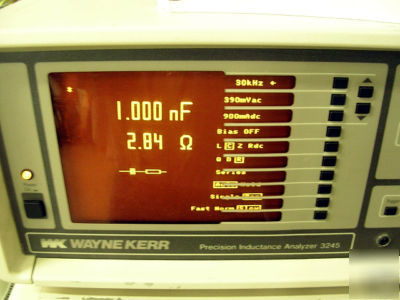

The Wayne Kerr 3245 Precision Inductance Analyzer contains all the stimulus, response, measurement and computation facilities necessary for the detailed analysis of inductors, coils and transformers. The 3245 operates from 20 Hz- 300 kHz. The 3220A DC Bias Current Source can be used with the 3245 to extend dc bias current to 20A with up to five units paralled to provide up to100A
* Frequency range: 0 to 999.999,999,999,995 s
* AC drive level: 250 mV to 1 V rms; 25 mA to 100 mA rms
* DC bias current: 0.2 to 20 A in 0.1 A steps
* Bias current accuracy: 1% of setting
* Output connectors: screw terminal type
* 115/230 Vac 10%; 50/60 Hz operation
THIS SET HAS BEEN TESTED AND COMES WITH A DOMESTIC DOA WARRANTY. WE WILL ALSO SUPPLY INTERCONN CABLE, POWER CORDS AND A FULL MANUAL
