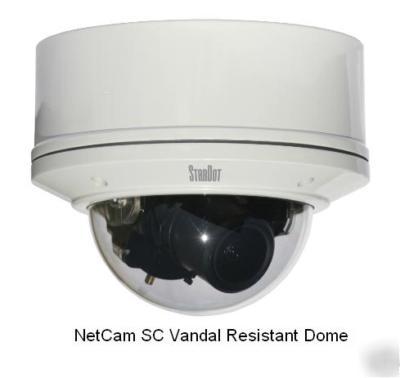

Stardot sc SD130V ip camera network netcam 1.3MP dome
Model/Part Number: SD130V (1.3MP with 4mm LENS)
PLEASE NOTE THAT THE FOLLOWING SPECS ARE GENERIC TO ALL RELATED MODELS.
Multi-Megapixel Hybrid IP Camera
Indoor/Outdoor Vandal Resistant Design
Simultaneous IP Network Video & BNC Coaxial Video Output
Outputs up to 5 Megapixel, 1080P, 720P and NTSC/PAL
Up to 15 Times More Resolution than CCTV Cameras
Includes 4-10mm Varifocal Megapixel Lens
Internal Events trigger NVR / Email / FTP
Power Over Ethernet, 12VDC or 24VAC
Available in 1.3, 3 and 5 Megapixel
Integrated Video Motion Detection
Automatic Day/Night IR Filter
Day/Night Mechanical IR Filter Option
The NetCam SC was specifically designed to bring in all the standard features of the analog CCTV world and combine them with multi-megapixel video. This includes a mechanical day/night IR cut filter that allows the camera to go into IR mode at night. Add an IR illuminator and now you clearly read license plates at night, even with the headlights aiming into the camera.
Unlike other IP camera companies, StarDot's history is deeply embedded in digital image processing. We didn't take a network device and simply throw in some imaging hardware. We packed fourteen years of digital image processing into our StarDot Imaging Engine processor and combined it with network
hardware specifically designed for video transmission, The end result is that the clarity, color balance and low light performance of the NetCam SC video is light years ahead of the pack.
All Models: RGB, CMOS, Frame Transfer, Up to 30 FPS
5 MP: 2592x1944 (10 FPS) / 3 MP: 2048x1536 (12 FPS) / 1.3 MP: 1296x976 (30 FPS)
Light Sensitivity: 0.3 Lux color, 0 Lux in IR mode (on IR models w/ IR illuminator)
Day/Night mechanical IR filter mechanism, automatic or manual (on IR models)
Video out BNC, allows viewing of video on field monitor, public view monitor
Auto/manual exposure, auto/manual color balance, sharpening, auto/manual haze, defective pixel replacement
Contrast enhancement, gamma correction, DNR (digital noise reduction), adaptive image resolution (low light)
Integrated video motion detection with Video-on-Motion bandwidth saver mode
Lens Mount: Industry standard CS-Mount, (C-Mount compatible)
Supported protocols: TCP/IP, HTTP, FTP, NTP, Telnet, Daytime, X/Y/Zmodem
32MB DRAM, 4MB Flash Memory, 32MB Imaging Buffer
Security: Password-protected user accounts for viewing and configuring NetCam SC Connectivity
1 x 10/100-baseT Ethernet, RJ-45, PoE 802.3af (Power over Ethernet)
1 x BNC Video Output (NTSC/PAL)
1 x RS-232 Serial Port, up to 115.2Kb
Dimensions: 5.9 Diameter (150mm) x 4.7 H (120mm)
Weight: 44 Ounces (1247 grams)
Power Requirements: 12VDC/ 24VAC/ POE
EMI Approval: FCC, Class A, CE (EN55024)
IP66 Weather Resistance Rating
