Radio systems inc. "phase ii" am broadcast transmitter

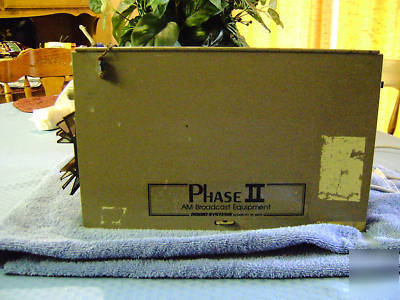

RADIO SYSTEMS INC. "PHASE II" AM BROADCAST
Up for sale is a fully functional and operational Radio Systems Phase II AM Broadcast Transmitter crystal tuned to 1100 kHz.

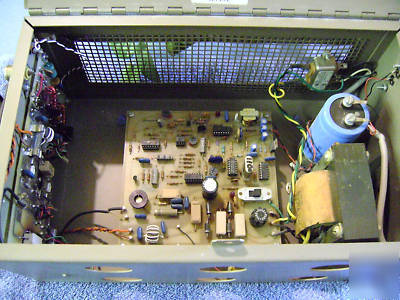

System can be used for Carrier Current operations with optional CP-15 Coupler (Not Included) or setup as a "Leaky" Cable System with special coax and proper 50 Termination. System can also be used as "Single" Conductor (Antenna) system as the antenna needs to match less than 2:1 VSWR for proper operation. This transmitter will produce a full 20 Watts Max of output RF Power (Adjustable from 100mW to 20Watts). This transmitter is crystal tuned to transmit at the frequency of 1100 kHz and is not adjustable. Crystals can be easily replaced inside the transmitter.
Change of Frequency crystals can be purchased from 3rd Party vendors such as: http://icmfg.com/index.html to change transmit frequency if so desired at a later time. (I do not carry extra crystals).
Further information on this transmitter can be found on the web @ http:// /PDF/TR20-CP15-man.pdf
Type of Emission Amplitude Modulation (A3)
Frequency Range 500kHz to 1.7kHz
Frequency Stability +/-002% (0 to 35 C)
Harmonic Attenuation 45dB or better
Noise 60dB below 100% Modulation
(for 100% modulation) 30dBm minimum
Frequency Response 20 Hz to 15kHz +/- 1.0dB Max
Audio Distortion Less than 2% @ 99% Modulation
Modulation Monitoring 100% peak LED flasher
Modulation Limiting Built-in 100% peak modulation limiter
20dB gain reduction; defeatable
Power Consumption 230 watts at 115 VAC Max
Good working condition in FAIR cosmetic condition with USUAL signs of use
I will insure all packages for their full value
General Conditions and Limited Warranty:
cosmetic condition and descriptions are subject to my determination and are NOT a warranty issue. I try to describe the equipment as accurately as possible and point out any major flaws. Minor cosmetic imperfections such as scuffs, scratches, scrapes, marks, etc., which don't affect the functionality of the item(s) are normal in any previously owned item and are to be expected.
all NEW item(s) are covered by the manufacturer's warranty only. This means that if there is any problem with the item(s) (including arriving DOA) you must resolve it directly with the manufacturer.
