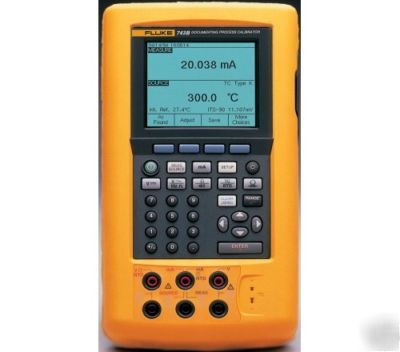

New fluke 743B 743 b process calibrator msrp 4,995 usd
If needed we can Calibrate for an additional $99.99 a $179.99 service
More memory, plus a PC interface and data logging
The 743B has all the capabilities of the 741B plus a PC interface that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis. With its expanded memory, the 743B can hold a full week of calibrations and procedures.
Whether you are calibrating instruments, troubleshooting a problem ,or running planned maintenance, the multifunction Fluke 743 Documenting Process Calibrators help get the job done faster. It does so many different tasks, so quickly and so well, it's the only process calibrator you need to carry.
* Differential pressure flow instrument calibration
Manage your instruments and your calibration data with this easy-to-use instrumentation management database. Create calibration procedures, lists, and instructions on your PC and download them to the 743B. Upload your calibration data back to your PC. Print reports or export data in standard ASCII format.
The scheduling of calibrations, creation of procedures and documentation of your calibration results can also be facilitated by a number of other instrumentation management software packages:
* Beamex QM6 Quality Manager Calibration Software
* Cornerstone Cal Station and Base Station
* Honeywell Loveland DocuMint
* Fisher Rosemount Asset Management Solutions
* Blue Mountain Quality Resources
DPC/TRACK is a trademark of Fluke Corporation.
QM6 is a trademark of Beamex, Inc.
Cornerstone is a trademark of Applied System Technologies.
InstruMint and DocuMint are trademarks of Honeywell.
Covers virtually any pressure application including gage, differential, dual (compound), absolute, and vacuum.
* Display pressure readings in any of 10 different pressure units you specify in the calibrator setup.
* Features internal temperature compensation from 0 to 50 C for full accuracy performance.
* Includes NIST-traceable calibration certificate.
* Modules can be calibrated locally, helping to control costs.
A family of twenty-nine optional pressure modules provides pressure calibration and measurement capabilities. Twenty-nine modules are available, with basic accuracy specsto 0.05%. Ranges start at 0-10"H20 (0-2.5kPa) and go to 0-10,000 psi (0-70,000 kPa).
Allow you to quickly set up powerful, automated calibration procedures for linear transmitters, DP flow transmitters, and one- and two-point limit switches. Simply select the appropriate measure and/or source functions and fill out the procedure template. The 740 Series does the rest. It quickly performs the test, calculates the errors, and displays the final results, highlighting out of tolerance points.
Enable you to map one unit to another, such as mV to C or F. Allows you to use the Fluke 740 Series with millivolt output accessories such as the Fluke 80T-IR Temperature Probe, and to document tests using non-supported units such as parts per million or revolutions per minute.
Enables technicians to record calibration results that were sourced and/or measured by other devices such as panel meters or readout-only devices.
Procedures perform fast, automated calibration of one and two-point limit switches for voltage, current, temperature, and pressure.
Differential pressure flow instrument calibration
Routines use a square root function to directly calibrate DP flow instruments.
Calibrate temperature, pressure, voltage, current, resistance, and frequency. Since it both measures and sources, you can troubleshoot and calibrate all with one rugged tool.
The easy-to-follow menu-driven display guides you through any task. Get up to speed in minutes, not days. Programmable calibration routines enable you to create and run automated as-found/as-left procedures to ensure fast, consistent, calibrations.
Records and documents results
To support your ISO-9000 or regulatory standards the Fluke 741 captures your calibration results, eliminating the need to juggle a pen and pad in the field.
Small enough to fit easily into a tool bag and to use in tight spaces. Runs an entire shift on a rechargeable NiCd battery pack.
Lets you read your results in any kind of light.
Provide one-touch access to enhanced functions such as task lists, automated procedures, scaling, min/max, stepping and ramping, and review memory.
Measure, Source, or simultaneous Measure/Source, - enable technicians to troubleshoot, calibrate, or maintain instrumentation with just one tool.
Displays instructions in English, French, German, Spanish, and Italian.
Built-in algebraic calculator
With four functions-plus square root-stores, recalls, and performs calculations required for setting up instruments or evaluating data in the field. Use it to set the source function to a calculated value. There's no need to carry a pencil and paper or a separate calculator.
Programmable measurement delay
Inside automated procedures permits calibrating instruments that respond slowly.
(% of reading + % of full scale)
Temperature, RTDs, and Thermocouples*
* Resolution: 0.1 C, except 1 C for 10W Cu. Best case, mid-range accuracies. Sensor inaccuracies not included. For 2-wire and 3-wire RTD measurements, add 0.4 C. Thermocouple accuracies with external cold junction. For internal junction add 0.2 C.
Via snap-shut door without opening calibrator; no tools required
* Pressure module connector
* RS-232 connector to interface to your PC
* Connection for optional battery eliminator
Complies with CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
1 week of calibration results
The standard specification interval for the 743B is 1 or 2 years. Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2. Floor specifications, expressed as "% of f.s.", "counts" or "ohms", remain constant.
User's Manuals & Other Documentation
741B / 743B User's Manual (PDF, 4.26MB)
741B / 743B User's Manual Supplement (PDF, 7kB)
74X Calibration Manual (PDF, 429kB)
DPC/TRACK User's Manual (PDF, 825kB)
DPC/TRACK Installation Guide (PDF, 15kB)
