Moore no. 3 precision jig grinder

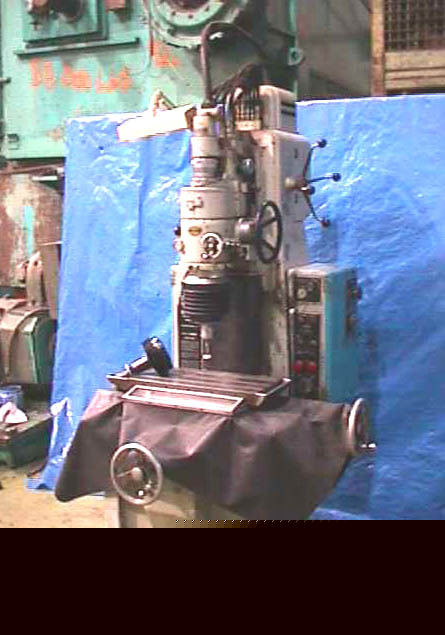

MOORE NO. 3 PRECISION JIG GRINDER
Table Top To Wheel Collet: 2" x 18"
Spindle To Column Below Ways: 13 1/2"
Infinitely Variable Spindle Speeds: 40 To 250 RPM
Infinitely Variable Spindle Feeds: 2 To 120 SPM
Diamond Mandrels: 1/64" To 3/16"
Main Spindle Slide Adjustment: 1 1/2 Degree
Either Way, 3 Degree Included Angle
Radial Off-Set Of Grinding Spindle:
From Center To 1 1/8" Off Center By Rough Adjustment
While Running .0001" Adjustment For Distance Of .100"
Maximum Grinding Diameter Without Offset
Maximum Grinding Diameter With Offset Extension
Approximate Dimensions: 50" x 60" x 98" H
Approximate Weight: 3,000 Lbs.
