Tektronix tek PG506 oscilloscope calibration generator

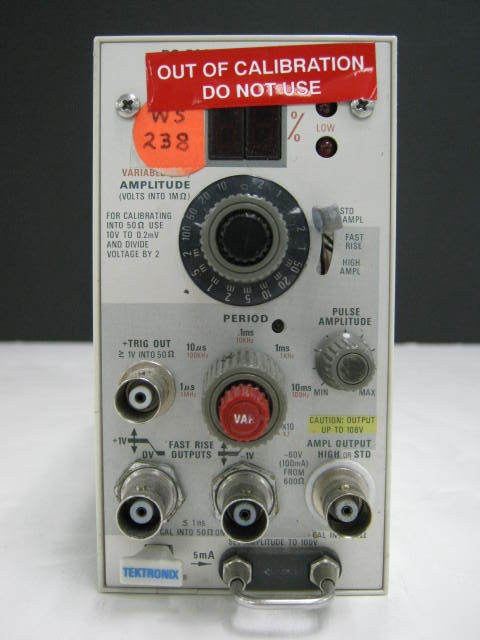

Tektronix Tek PG506 Oscilloscope Calibration Generator
The PG506 Calibration Generator provides three modes of squarewave output, selectable dc outputs, and a variable-amplitude output with front-panel digital indication of oscilloscope deflection error. Simultaneous plus and minus low-level, fast-rise (1.0 ns) squarewaves or high amplitude (60 V), extremely clean squarewaves are available at frequencies from 10Hz through 1MHz for checking oscilloscope transient response.
readout of scope deflection error
amplitude calibration mode
Period: fixed at ca. 1 ms or DC
Amplitude: 200 Volt peak-peak to 100 Volt peak-peak
1 s to 10 milliseconds in decade steps for period
calibration current loop of 5mA for current probe calibration
rise time: unterminated: 100 ns or less. Terminated into 50 ohms: 10 ns or less
Rise-Time (terminated into 50 ohms): < 1.0ns
Polarity, simultaneous negative and positive
Direct Readout of Oscilloscope Deflection Error
