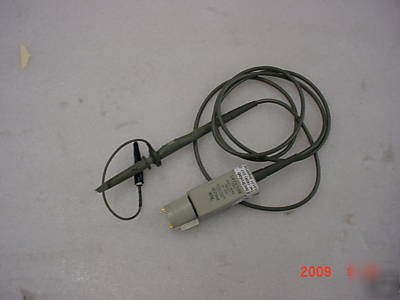

Tektronix P6231 bias/offset probe
The P6231 Probe acts as a standard 500 ohm passive voltage divider with the additional capability of having an adjustable tip nulling voltage. This feature reduces the dc loading effects of the P6231 when it is used to measure signals whose mid-voltage value is not at zero volts or in circuits where the termination impedance is not returned to ground level. Power for the P6231 is supplied by the CSA, DSA, TDS and 11000 Series mainframes through the TEKPROBE BNC Interface, eliminating the need for extra cabling and/or external power supplies. An 1103 TEKPROBE Power Supply or a TEKPROBE Interface is required.
* Input capacitance: 1.6 pF typical
* Maximum input: DC + peak AC: 30 V
