> Tektronix 760 stereo audio monitor *tested*
Tektronix 760 stereo audio monitor *tested*
Tektronix 760 Stereo Audio Monitor *Tested*
* Graphic CRT Display of Stereo Audio Signal
* AGC for Continuously Viewable Pattern
* Third Bar Indicates Mono Compatibility when Set to SUM
* Suitable for Phase and Amplitude Measurements
With the Tektronix 760A Stereo Audio Monitor, the audio engineer can analyze a pattern display of the stereo audio signal. This display, along with a high resolution bar graph, provides accurate monitoring and measurement capabilities. Used in both operation and setup, the instrument provides immediate feed-back of the audio signal for creative or technical correction. With the appropriate test signals, the unit can also be used for accurate phase and amplitude measurements.
On the CRT and adjacent bar graph, you can observe amplitude information, stereo separation, and phase correlation between the left and right channels. Also of great importance, you can see monaural amplitudes resulting from the stereo channels.
Your choice of automatic or manual gain control provides flexible control of the pattern size. With no input signal, the display will dim to prolong CRT life.
Two calibrated bars are dedicated to the left and right channels. The input to a third bar is selectable from Sum, Difference (both internally derived) and an Auxiliary input on the rear panel. These give the operator accurate level indicators featuring a three second "peak hold" that makes level monitoring easier than ever.
The 760A is ideally suited for use in editing suites, master control, transmission and any other locations where monitoring the stereo audio signal is a must.

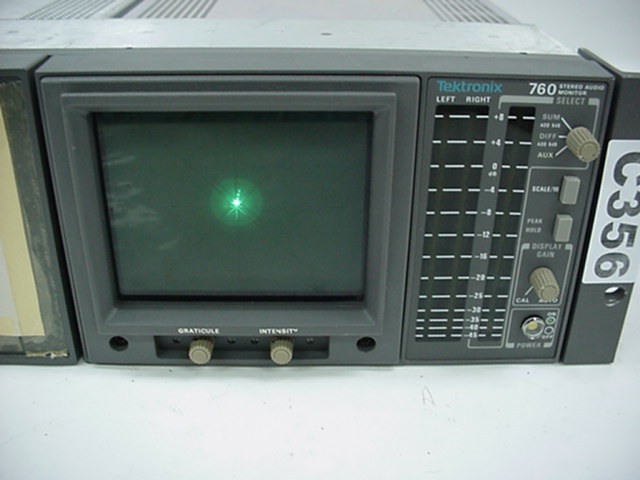

Cosmetic condition is good, the unit has been tested and works. The graticule light does not work.
Status This item is sold as " Tested and Working ", see below images for further details.
