> Diehl mark v analyst for tv deflection systems
Diehl mark v analyst for tv deflection systems

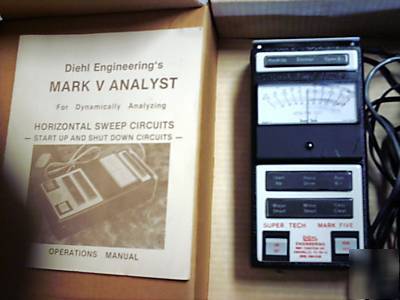

CONNECTS IN PLACE OF THE TV HORIZONTAL OUTPUT TRANSISTOR AND RUNS THE TV NO MATTER WHAT AS LONG AS THERE IS B+. TELLS YOU IF THERE IS STARTUP AND DRIVE. IN TEST MODE TELLS YOU IF THERE ARE MINOR OR MAJOR SHORTS OR IF THE FBT AND ITS LOADS ARE OK. IF THERE ARE SHORTS YOU CAN REMOVE THE SECONDARY AND PRIMARY FBT LOADS TO ISOLATE THE PROBLEM AREA. IF THE LOADS ARE REMOVED AND THERE ARE STILL SHORTS THE FBT IS DEFECTIVE. SAVES YOU FROM REPLACING GOOD FBTS OR RUINING OUTPUT TRANSISTORS. IN RUN MODE, IT RUNS THE TV WITH THE ANALYSTS OWN DRIVE TO PROVE OPERATION OR TO ALLOW TROUBLESHOOTING INTERMITTANTS.
