5" x 5" x 1/2" marvel/spartan 1W66D hyd. ironworker

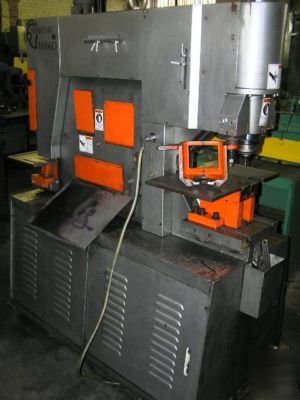

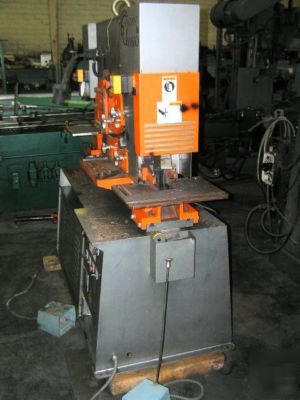

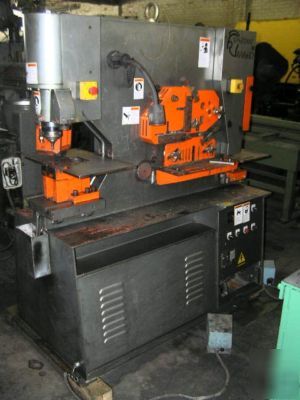

5" X 5" X 1/2" MARVEL/SPARTAN MODEL 1W66D HYDRAULIC IRONWORKER
Work Stations..........................5
Capacity...............................66 Tons
Standard Tooling.......................1-1/2" in 3/8"
Large Tooling..........................2" in 5/16"
Oversize Tooling.......................6" in 3/32"
Throat Depth...........................12"
DX Size................................20"
Max Channel Flange.....................7"
Stroke Length..........................4"
Cycles Per Minute......................30
Work Height............................41-1/4"
Flat Bar Shear.........................14" in 9/16"
Width and Thickness....................10" in 3/4"
Blade Length...........................14-1/8"
Angle Flange Trim......................4"
Work Height............................36"
90 Deg.................................5" x 5" in 1/2"
45 Deg.................................2-1/2" x 2-1/2" in 5/16
Work Height............................43-3/4"
Round Bar..............................1-1/2"
Sq. Bar................................1-1/2" x 1-1/2"
Work Height............................48"
Rectangular Notching...................2" x 3-1/2" in 3/8"
Work Height............................35-3/4"
Main Motor.............................7.5 HP
Dimensions.............................62" x 31" x 67", 4800 lbs
