336.4 kcmil aac/pe aluminum overhead covered line wire


Alcan Cable s single conductor overhead line wire delivers continuous
and reliable performance on overhead distribution circuits. Alcan provides a single conductor line wire in stranded hard drawn 1350 aluminum (compressed). The conductor covering is low density polyethylene .
Product Application and Features:
Designed for use in overhead distribution circuits at primary or
The covering provides circuit protection from momentary contacts with
other conductors or trees, and corrosion resistance in certain environments.
Low Density Polyethylene insulated
conductors are rated for 75 C operation.
Conductors are to be installed on insulators.
Meets or exceeds the requirements of ANSI/ICEA S-70-547.

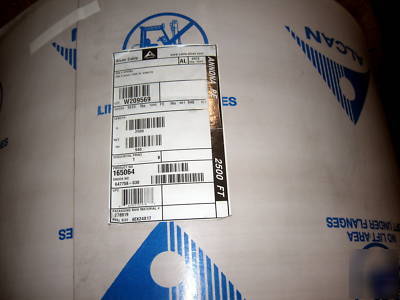

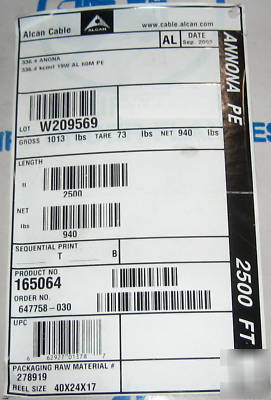

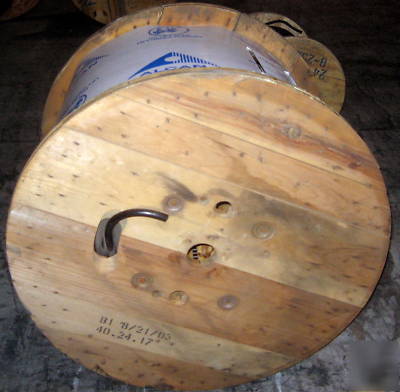

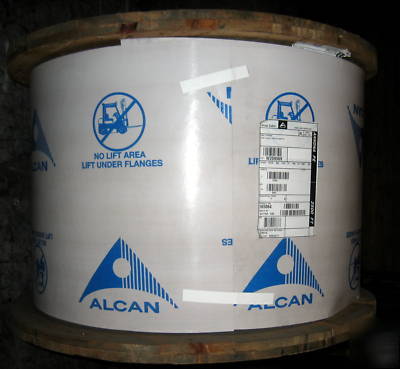

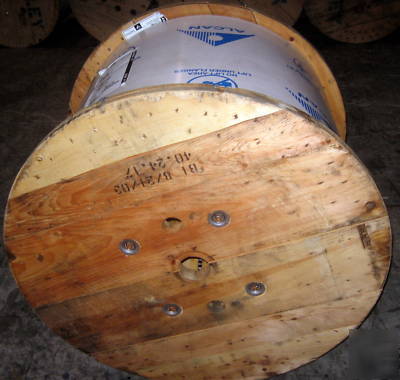

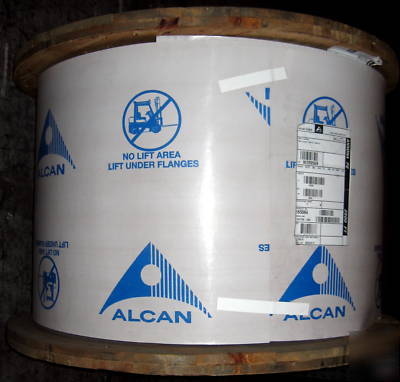

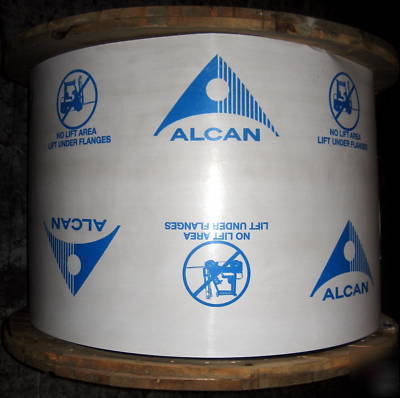

This Wire has 19 strands and its rated strength is 5530 pounds. The polyethylene insulation is 60 mils thick. The nominal diameter of the bare wire is .646 inches and the total outside diameter of the wire is .766 inches.The nominal weight is 315.5 pounds per 1000 feet of aluminum and total weight of 379 pounds per 1000 feet. There are 2500 feet of wire on this reel.
Construction: Consists of stranded hard drawn 1350 aluminum (ASTM-B231) AAC (All Aluminum Core)
