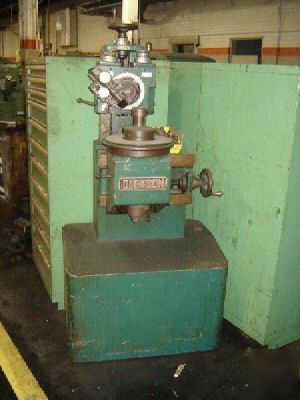

#15 GLEASON BLANK CHECKING MACHINE
Diameter Of Gear Blank Maximum......... 15"/(381mm)
Diameter Of Gear Blank Minimum......... 2"/(51mm)
(Maximum For Gears & Pinions).......... 2"/(51mm)
Spindle Nose To Crown (Min For Pinions)
Back Angle Up To 70-Degrees............ 4"/(102mm)
Back Angle 70-75 Degrees............... 4.25"/(108mm)
Back Angle 75-80 Degrees............... 4.5"/(114mm)
Back Angle 80-95 Degrees............... 4.75"/(121mm)
Back Angle Over 85-Degrees............. 5"/(127mm)
Travel Of Indicator (Face Angle)....... 0 - 90 Degs
Travel Of Indicator (Back Angle)....... 0 - 90 Degs
Maximum Length Between Centers......... 17.75"/(450mm)
Minimum Length Between Centers......... 6.5"/(165mm)
Dia 0f Work Spdl Bore (Lg End)......... 3-29/32"/(99mm)
Spindle Taper Per Foot................. 39/64"/(1:20)
Depth Of Spindle Taper................. 6"/(153mm)
Floor Space............................ 22"x 32-11/16"
Floor Space............................ (560x830mm)
Approx. Machine Net Weight............. 1,900 Lbs.
Approx. Machine Net Weight............. (860 kGs)
NOTES: Suitable For Checking Bevel & Hypoid Gear
Blanks From 2" (50.8mm) To 15" (381mm) Diameter
