Flex weigh corporation dwm-iv digital scale controller

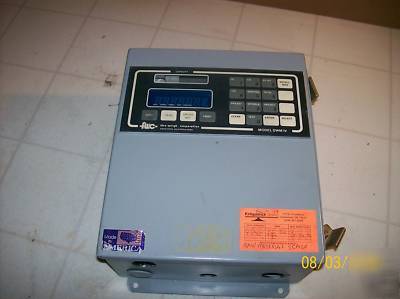

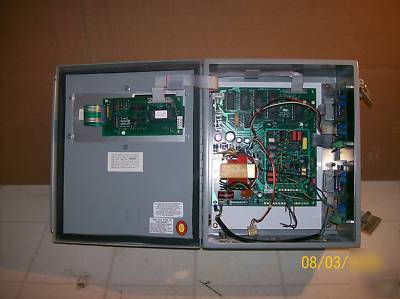

FLEXWEIGH CORPORATION DWM-IV SERIES DIGITAL INDICATOR
The DWM-IV is designed for even the most rugged industrial environments. As the benchmark unit for all full-function weightmeters, it offers a long menu of versatile features, precision accuracy, and unsurpassed reliability. The DWM-IV has proven itself as one of the most successful models of all time.
* Keyboard Programmable Setup - All select functions, setup and calibration are programmable through the keyboard. Access to setup mode is enabled by internal program select
* Pushbutton Zero - Used for establishing gross zero. Enabled at a range of 2% or full scale capacity
* Pushbutton Tare - Automatically tars the weight of the object placed on the scale
* Auto Zero Tracking - Automatically tracks zero within 1/4 digit to ensure a stable zero
* Gross/Net Pushbutton - View net and gross weight when tare weight has been entered
* Print Pushbutton - Transmits data out of serial port
* Numeric ID - Single register to enter up to seven digits of numeric identification
* CN - Six digit consecutive number increments each time the print button is pressed
* Recall Tar Pushbutton - Used for recall viewing of tare weights
* Keyboard Tare - 10 Tare lookup (0-9) to enter predetermined tare values
* PC WT Entry - 9 Piece weight look-up (1-9) determines count by entering pre-determined piece weight
* Weight Accumulators - 10 weight accumulation registers with sub-total/total
* Digital Filter - Compensate for vibration or motion, keyboard selected from 1 to 32 updates per average
* Data Output - Serial ASCII 20mA current loop with selectable baud rates (150-19, 2K), selectable auto or manual print, continuous data out, or bi-directional communication
* Remote Control Inputs - Zero; Tare; Net/Gross; Print Require voltage free contact
* Enclosure - NEMA-12 wallmount/dust tight
