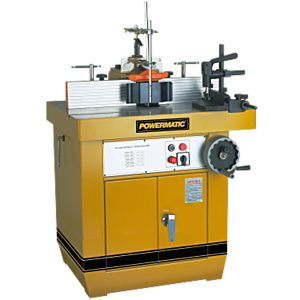

New brand powermatic shaper -29 5HP,3PH
The Model 29 Shaper is a sturdy machine with a 35-1/2" x 27-5/8" extra thick cast iron table. The spindle tilts 45 forward and 5 backward for bevel shaping. Three standard table inserts are included, the smaller insert with a guide shoulder for copy work. Two hold-downs and cutterhead shield come standard, and the entire hold-down assembly flips out of the way for spindle changes.
Spindle Speed: 3000, 4000, 6000, 8000 and 10,000 RPM Reversing
Spindle Diameter: 3/4, 1 and 1 1/4 "
Spindle Size Under Nut: 3/4 (3 15/32), 1 (3 15/16) and 1 1/4 (4 3/4) "
Tilting Spindle: 45 forward, 5 back
Table Opening Diameter: 8 15/16 "
Table Insert Opening Diameter : 2 1/2, 5 1/2 and 5 7/8 x 4 3/16 " (oval)
Fence Size (L x H): 5 1/8 x 27 9/16 "
Router Bit Collet Diameter: 3/8 and 1/2 "
Wiring Remarks Requires: optional transformer for 460 V
Web Description: 29 Shaper, 5HP 3PH 230/460V
Overall Dimensions: 35-1/2 x 33-1/2 x 46
