New 1 marathon iec metric 1/4HP .18KW 63 frame motor

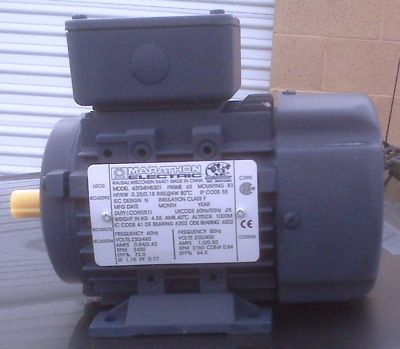

1 NEW NEVER PUT INTO SERVICE 1/4HP .18KW IEC Metric motor by MARATHON ELECTRIC

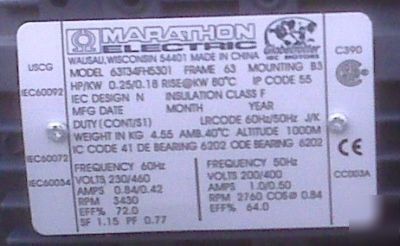

63 FRAME 3600/3000 RPM, 230/460V @ 60HZ, 200/400V @ 50HZ
CT SPEED RANGE 20:1, NOM EFF 72%, FLA @60HZ .8/.4, WEIGHS 11#
ALUMINUM FRAME, CLASS F INSUL WITH CLASS B RISE, IP55 WEATHER PROOF, ROTATABLE/REMOVABLE BASE, 1.15 SF, TERMINAL BLOCKS STUD TYPE
INCLUDED IS A FLANGE B14 MOUNTING KIT (BOLT CIRCLE 75MM) & A FLANGE B5 MOUNTING KIT (BLOT CIRCLE 115MM)
OUTLINE DIMENSION IN PDF FORMAT AVAILABLE from the web
CONNECTION DIAGRAM AVAILABLE from the web
INSTALLATION, MAINT & OPERATION MANUAL AVAIL IN PDF FORMAT from the web
CERTIFIED DATA SHEET AVAILABLE off the web
** FOR ANY OTHER MARATHON MOTOR OR ACCESSORY NEEDS DROP ME AN EMAIL !! **
