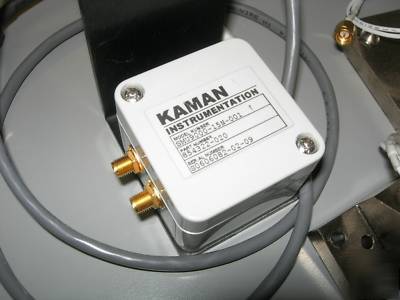

Kaman instrumentation SMU9000-15N-001 sensor measuring
Measuring Range: 15N: 35 mils(0.9mm)
Kaman s SMU-9000 system uses proven inductive (eddy
current) technology to measure position without contacting
the target. It is ideal for applications requiring high resolution,
including precision machining and grinding, spindle
axial runout, mirror alignment, optical stage positioning,
metrology measurements, and others.
The SMU-9000 system is based on Kaman s proprietary
Pulse Width Modulated electronics, incorporating the latest
surface-mount components with printed circuit board
designs. Combined with proven eddy current sensors
recognized worldwide for high reliability and outstanding quality, for a simple, small, stable, highly-reliable measurement tool.
http:// /html/products/pdf/wSMU9000-9200.pdf

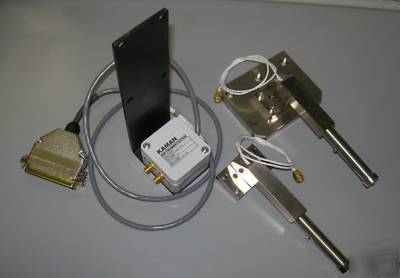

Includes Attached Mounting Brackets
