Fluke 80K-6 hv high voltage probe 6KV for multimeter

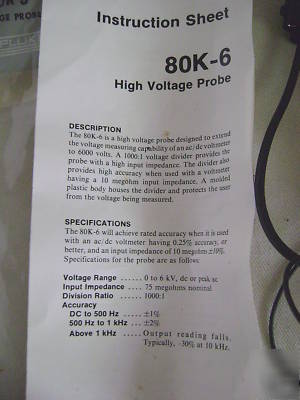

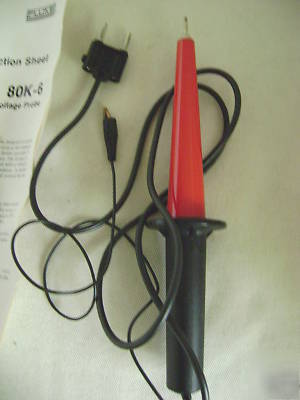

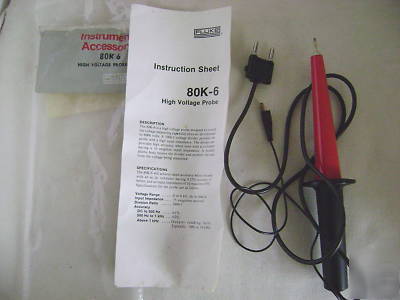

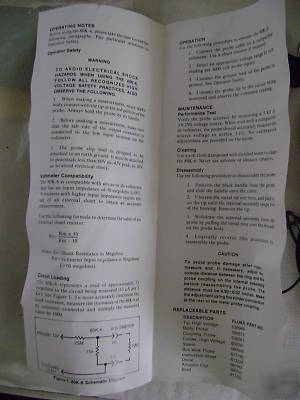

This item is a used 80K-6 HV High Voltage Probe 6kV in excellent condition.With instruction booklet. This probe will extend a typic multimeter to 6kV by attenuating the voltage by 100x. Another common application is to discharge a CRT. Max 6kV peak, Cat I only.
The 80K-6 is a high voltage probe designed to extend the voltage measuring capability of an AC/DC voltmeter to 6,000 volts peak AC or DC Overvoltage Category I.
This means the probe can only be used to make measurements on energy limited circuits within equipment.
Examples include high voltage within televisions or photo copy machines.
DO NOT use this probe to measure high voltages on power distribution systems.
The probe provides high accuracy when used with a voltmeter having 10 Megohm input impedance.
