Cascade microtech / hp 54701A active probe
MICROTECH CASCADE / HP 54701A ACTIVE PROBE W/
* Description: This unit is a Cascade Microtech Active Probe. It has the same specs as the Agilent 54701A 2.5-GHz Active Probe is a probe which is a solution for high-frequency applications. The 54701A is designed to be powered from a connector at the front of the oscilloscope, or with the 1143A Probe Offset Control and Power Module. It can be used with any measuring instrument with a 50 input.
* Bandwidth (-3 dB): >2.5 GHz
* Input resistance: 100 k 1%
* Input capacitance: 0.6 pF (typical)
* Maximum Input Voltage 200 V[dc + peak ac(<20 MHz)]
* Flatness: <3 ns from rising edge 6%, 3 ns from rising edge (for input edge 170 ps) 1%
* Dynamic Range: (<1.5% gain compression) 5 V peak ac and 50 Vdc
* Offset adjustment range: (referenced to the probe tip) 50 V
* RMS output noise: (dc to 2.5 GHz, input loaded by 50 ): <300 mV
* Propagation delay: 7.5 ns (approximately)

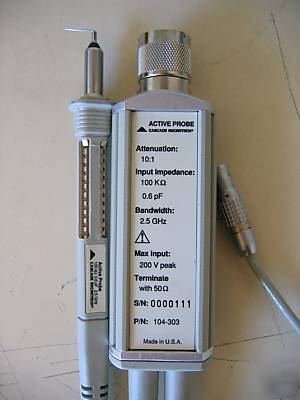

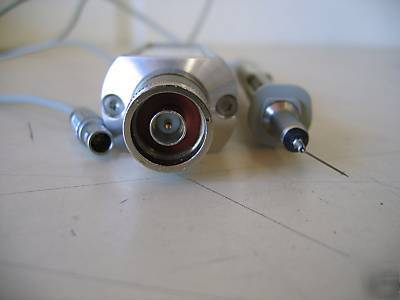

* Working Condition: Presumed Good. As depicted in the pictures above, the tip of this item is broken and needs repaired.
