Accura 02330 general type 3 hp shaper 3/4 & 1" spindle

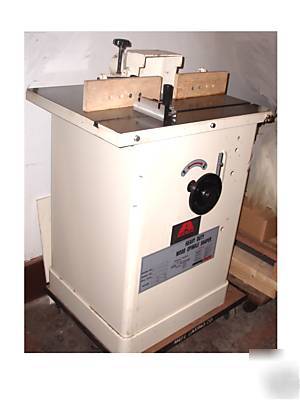

ACCURA 02330 GENERAL TYPE 3 HP SHAPER 3/4 AND 1 INCH SPINDLE
This shaper is great for the shop that desires a machine with a larger table size.
A 1/2" spindle, as well as router collets, are available for this machine.
It has long life sealed bearings in the spindle, and the spindle moves up and down easily with an oversized handwheel.
A t-slot miter gage is standard equipment an this unit is very similar to the GENERAL 3 hp unit.
Has 2 spindle speeds of 8000 and 10000 rpm and the spindle travels 3 1/4".
Table inserts are 3 1/2 and 7" and the machine features the following capacity under nut for cutters - 1" spindle-4", 3/4" spindle-3" and 1/2" spindle-2 1/2".
Table height is 34" from the floor and the table size is 28 x 30"
