Square d 30 kva 3 phase transformer 30T3HISFIL

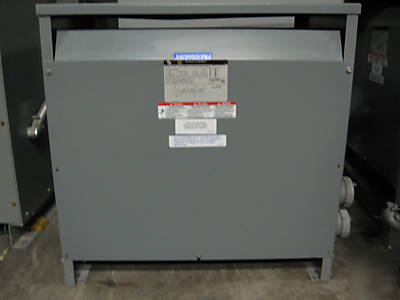

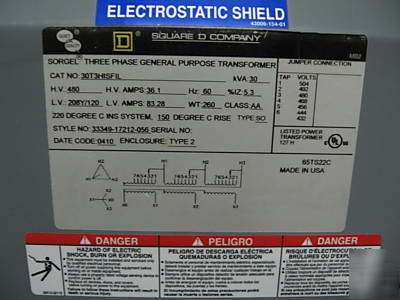

THIS ITEM IS IN GOOD USED/TESTED CONDITION 30 KVA DRY TYPE THREE PHASE ELECTROSTATICALLY SHIELDED DRY TYPE TRANSFORMER. 480V PRIMARY 208/120 SECONDARY. SPECS CAN BE SEEN ON THE PICTURE OF THE LABEL . 1 YEAR REPLACEMENT WARRANTY. CATALOG SPECS:PRIMARY VOLTAGE 480 V DELTA; SECONDARY VOLTAGE 208 V STAR/120 V; 60 HZ; POWER RATING 30 KVA; 3 PHASE; TAPS (2) +2.5 PERCENT X (4) -2.5 PERCENT; TEMPERATURE RISE 150 DEG C; FLOOR MOUNTING; NEMA 2; SIZE 30 INCH W X 20 INCH D X 30 INCH H; WEIGHT 295 LB; APPLICATION INDOOR; APPROVAL UL; 7400 MODEL; INCLUDES SURGE FILTER, SUPPRESSIONCALL OR EMAIL WITH ANY QUESTIONS Edison Electrical Surplus Inc. provides a 1 YR REPLACEMENT WARRANTY on all items
