Lecroy 9211, 250 mhz pulse generator module

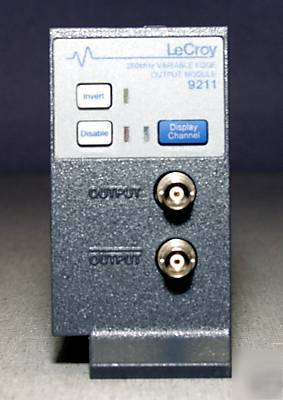

LeCroy 9211 250 MHz Pulse Generator Module
The LeCroy 9211 250 MHz pulse generator 250 MHz (module for LeCroy 9210) 1nsec output module features: Variable edged... 1nsec to 1 msec, 5 volt swing into 50 Ohms, Complementary outputs.
Maximum Rep Rates: 250 MHz
Minimum Pulse Width: 10.0 nsec
* Output Levels: (into 50 ohms)
Output Voltage Range: 5 volts
Variable Transition Times (10% to 90%):
* Leading Edge: 6.5 nsec to 95 msec
* Trailing Edge: 6.5 nsec to 95 msec
