Leblond regal 19"X78" cc servo shift engine lathe with

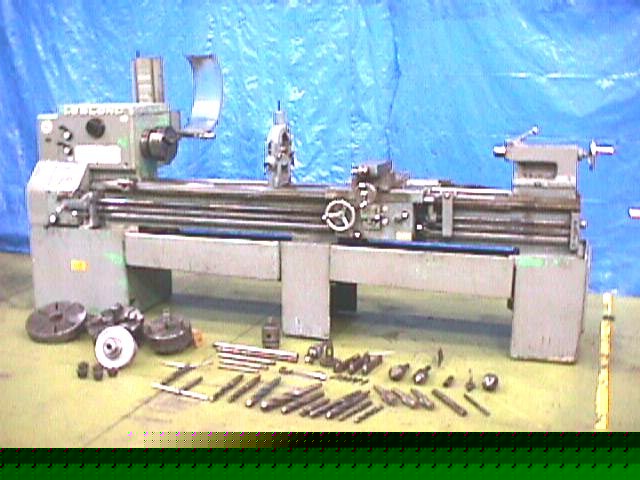

LEBLOND REGAL 19" X 78" CC SERVO SHIFT ENGINE LATHE
WITH TAPER ATTACHMENT AND TOOLING
Spindle Speeds: 40, 566, 80, 109, 155, 219, 310,
424, 581, 821, 1160 And 1600 RPM With Servo Shift
9" Diameter 3 Jaw Chuck, (Currently On Lathe)
Buck 10" Diameter 3 Jaw Chuck With Removable/
Jacobs Rubber Flex Spindle Nose Collet Chuck
Jacobs #18N 1/8"- 3/4" Capacity, Drill Chuck With
(5) Miscellaneous Rubber Flex Collets
Taper Attachment With Bed Clamp
Heavy Duty 4 Morse Taper Tailstock With Dual Bed
Micro Adjustment Carriage Stop
Forward/Reverse Feed Lever At Carriage
Spindle Engagement Levers At Headstock And
Graduated Hand Dials On Cross And Compound
Boring Bar Toolpost With Several Boring Bars
Assorted Tooling Including Drill Bits, Wrenches,
Built In Coolant Tank, (Sorry No Pump)
Baldor 7 1/2 HP, 208-230/460 Volt, 1725 RPM, 3
Phase Motor, (Currently Wired For 460 Volts)
Approximate Dimensions: 41" D x 133" W x 67" H
Approximate Weight: 4,500 Lbs.
