Jdsu ols-6 singlemode optical laser light source ols

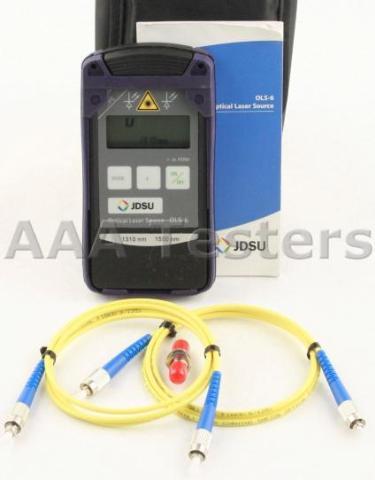

* JDSU OLS-6 Singlemode Optical Laser Source
JDSU OLS-6 Singlemode 1310nm 1550nm Optical Laser Source
This Unit Is In Like New Condition!
* Pocket class: Rugged, compact and lightweight
* Easy-to-use, straight forward operation
* Reliable basic functionality for most economical testing
* Three year calibration period
* OLS-6: dedicated for single mode at 1310 and 1550 nm
* Standard AA batteries or NiMH/NiCd cells
The JDSU OLS 6 pocket sized light sources are the result of JDSU's many years of experience in optical measurement technology. They are designed for dual wavelength measurement alongside JDSU's pocket sized or Smart optical power meters.
The rugged OLS 6 is really pocket sized and fit into a handy belt bag so they are always ready to use. The simple three button operation together with an easy to read display makes them extremely easy to use.
The OLS 6 is designed for dual wavelength measurement in various single mode applications. It has separate optical laser ports for each wavelength (1310 nm and 1550 nm, 1490 nm and 1550 nm, or 1550 nm and 1625 nm). Together with an JDSU optical power meter (OLP) the automatic wave length detection guarantees fast and error free results.
The 1625 nm wavelength of the OLS 6 allows additional tests for detection of micro/macro bending effects at optical fibers. This makes it ideal for dense wavelength division multiplexing (DWDM) applications.
The OLS 6 with 1490/1550 nm is specially designed for tests in FTTx applications.
Modulated output signal (Rectangular, modulation ratio 1:1);
output signal includes information (detectable by all JDSU power meters)
modulation for fiber identification 270 Hz, 1 kHz, 2 kHz
Two outputs (one for each wavelength) each with the same connector (to be selected when ordering) FC/PC, SC/PC
