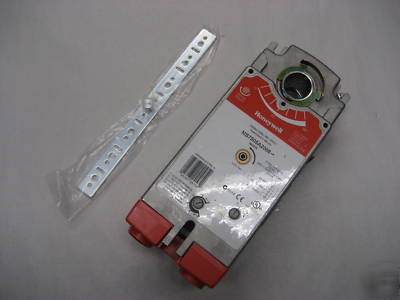

Honeywell MS7505A2008 (0)2-10VDC,floating actuator
(0)2-10Vdc,Floating Actuator - 44 lb-in, Spring Return , 24 Vac +/-20%, 50 Hz, 60 Hz
Spring Return Direct Coupled Actuators (DCA) are used within heating, ventilating, and air-conditioning (HVAC) systems. They can drive a variety of quarter-turn, final control elements requiring spring return fail-safe operation.
Brushless DC submotor with electronic stall protection on all models
Self-centering shaft adaptor (shaft coupling) for wide range of shaft sizes
Access cover to facilitate connectivity
Durable plastic housing with built-in mechanical end limits
Spring return direction field selectable
Shaft position indicator and scale
UL (cUL) listed and CE compliant
All models are plenum rated per UL873
