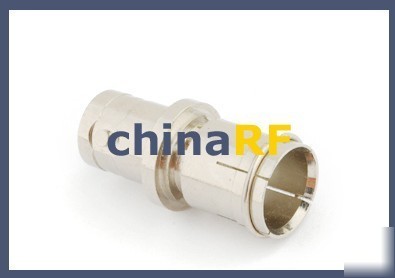

5X dvb-t tuner antenna adapter bnc jack to dvb-t plug
5pcs DVB-T TV-Tuner Antenna Adapter BNC jack to DVB-T plug
Temp.range................-65 +165 (PE Cable ) degree Celsius
Vibration.................MIL-STD-202,Method 213
Impedanec.................50 .75
Frequency Range...........DC 4GHz
Working Voltage...........500V max
Withstand Voltage.........1500V rms
Center Contact............ 1.5m
Outer Contact............. 1m
Insulation resistance .... 5000 m
VSWR Straight............. 1.22
Right angle?.............. 1.30
Durability(mating)........ 500 (cycles)
shell ..............brass .......nickelplated
contact pin ........brass.....gold or silverplated
socket............. beryllium...gold or silverplated
elastic contact.... beryllium gold or silverplated
crimping suite..... copper alloy... nickelplated
The BNC series coaxial connector works well in lower microwave frequency applications including monitors, LAN, telecommunication devices and test equipment.
