36" doall model 3612-2H vertical band saw w/vari-speed

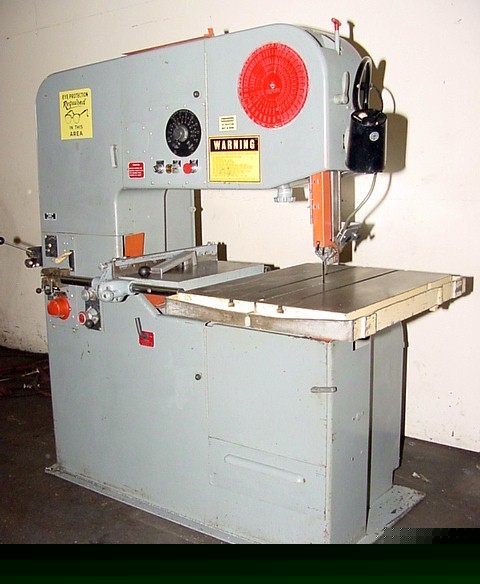

36" DoALL MODEL 3612-2H VERTICAL BAND SAW w/VARI-SPEED
MODEL: 3612-2H S/N: 400-82168 NEW: 1982
THROAT, BAND TO COLUMN ........................ 35-1/2"
MAXIMUM WORK HEIGHT ............................... 12"
BAND WIDTH CAPACITY ...................... 1-1/16" - 1"
SAW BAND LENGTH 2 WHEEL .......................... 125"
SAW BAND LENGTH 3 WHEEL .......................... 175"
BAND SPEED RANGE, VARIABLE ............... 5 TO 300 FPM
TABLE SIZE .......................... 26"-1/2 X 33-1/2"
TABLE STROKE ...................................... 12"
TABLE FEED HYDRAULIC ........................ 0 - 6 FPM
TABLE FEEDING FORCE ....................... 0 - 175 LBS
AUX (REAR) TABLE SIZE (F-B X L-R)........ 16-1/2" X 20"
APPROXIMATE MACHINE WEIGHT .................. 2,000 LBS
APPROXIMATE DIMENSIONS ............... 66" X 74" X 78"H
DOALL HI-TORQUE DC ELECTRONIC DRIVE - DRIVE SYSTEM
DELIVERS UP TO 85% OF TORQUE DIRECTLY TO THE
BAND DRIVE WHEEL. ELECTRONIC SPEED CONTROL HOLDS
BAND SPEED AT THE PROPER SETTING SO THAT SPEED-
CHANGE IS INSTANTANEOUS. BY ELIMINATING MANY
COMPONENTS OF THE MECHANICAL SPEED CONTROL
ASSEMBLIES, VIBRATION IS MINIMALIZED, WHICH
PROVIDES FAR BETTER BLADE LIFE. FIELD TESTING
CONFIRMS THAT DOALL'S DC DRIVE SYSTEM DELIVERS
UP TO TWICE THE BLADE LIFE OF MECHANICAL DRIVE
HYDRAULIC TABLE FEED/WITH HAND CONTROLS
DOALL DBW-15 WELDER/GRINDER/SHEAR
MACHINED IS WIRED FOR THREE PHASE 60 CYCLE 440/480 VOLT OPERATION
