Tenon maker cutter build with logs makes 4 tenon sizes
LOGMAN TENON MAKER 2 PATENT 6799615

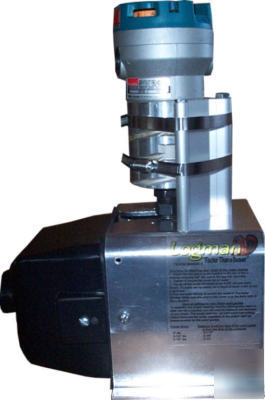

New improved model with new router bracket . This new
model uses routers with removable bases only.
No more drilling holes to attach your router . You can easily
attach any router motor to the router bracket with just two hose
clamps. To remove your router for another application all you do
loosen the hose clamps. The u bracket has a slot on the top so the
router motor with the router bit can slide right out .

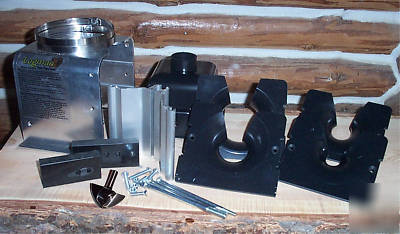

EVERYTHING INCLUDED IS LISTED BELOW:
Polished aluminum u-bracket ,Also includes 4 sizes for 4 size tenons.You can build almost anything
with these 4 popular sizes!! sizes included are: 1", 1-1'2", 2" & 3"
Includes the dust collector for attaching to a shop vac,
Includes New router bracket bolts & hose clamps.
To see a streaming video of the Tenon Maker in action Click
here when you get on youtube type in
Logman Tenon Maker 2". You will see set-up steps & making tenons .
Sorry the new router bracket is not shown in the video.
IF YOU ARE LOOKING FOR THE BEST & MOST AFFORDABLE
WAY TO PUT A TENON ON A LOG THIS IS IT !!
What the bigger router bit means to you is no tapering down log ends before
you put a tenon on a log. At the bottom of the page we state the max. diameter
of the log ends thatyou can feed into the wood guides. Because of the bigger funnels in the
wood guides & the bigger router bit you won't have to taper log ends down ,
"this is a real time saver!! If the log fits into the funnel of the wood guide it's

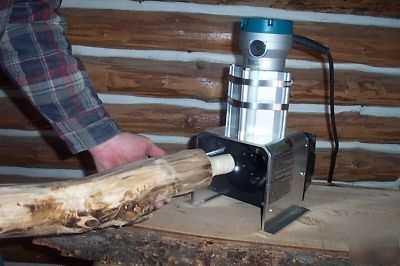

going to get cut down.To put a tenon on the end of a log all you need to do
is push and turn the log end into the hole in the wood guide. Tenon Makers
work just like an electric pencil sharpener,the faster you turn the log the
designed radius shoulder tenon on the end of a log. This tenon was designed

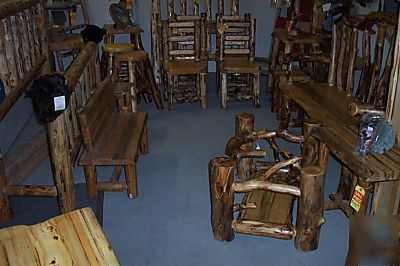

just for the log furniture and handrailing builders. We designed this new
router bit to cut a tenon that has holding power. A tenon has holding power
if some of the shoulder of the tenon can be tapped into the hole you drill in a log.
NOTE, The LOGMAN 2 black router bit will not work in
some of the furniture we build using our Logman Tenon Maker 2.
(I RECOMMEND USING A 2 OR MORE HP. ROUTER that has a variable speed WITH A 1/2" COLLET.)
LISTED BELOW ARE MAX DIA. LOGS THAT WILL FEED INTO
THE NEW LOGMAN TENON MAKER II, WITHOUT HAVING TO
TAPER LOG ENDS. Tenons can be any length for all sizes.
wood guide size max diameter log
