Repeater cable cat controller motorola GM300 CDM1250

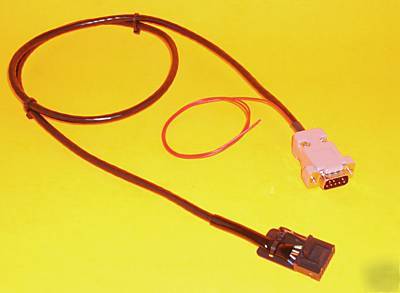

Link Radio Cable Assembly. Length = 36".
Interfaces a 16 or 20-pin Motorola mobile radio, such as Radius, Maxtrac, GM300, M1225, SM120, CDM750, CDM1250, CDM1550, etc., to the link transceiver port(s) of the following CAT (Computer Automation Technologies, Inc.) products:
* CAT250 and CAT400 Repeater Controllers
* RLS-1000B Remote Base Switch
DB9 male connector mates with controller.
16-pin latching radio connector for connection to the link transceiver radio.
Pull-up resistor installed on connector ensures flawless carrier detect operation.
Pin 6 of the controller connector (switched output) is brought out to a flying lead.
Professionally built, fully tested, guaranteed.
Please view my other items. Special configurations (made to order cable assemblies, custom lengths, etc.) are available, too - with fast turnaround and no mimimum order. If you don't see what you need, please ask.
