NEMA23 z axis ballscrew igus proxxon cnc kit

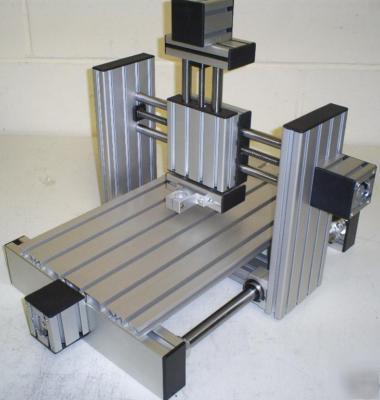

Nema 23 Z Axis - Supplied as a Kit - 50mm (2")stroke + Ballscrew
Chrome Shafting, IGUS Linear Bearings, Linear translation by Ballscrew Assembly. 20mm Proxxon Motor Mount.
Unlike many pre-Assembled Z axis we offer an additional flange bearing assembled to the top yoke, this prevents unnecessary strain on the stepper motor bearings.
x4pcs IGUS linear bearing are assembled within the Z axis housing, running over 16mm Chrome Plated Anti-Corrosion resistant shafting, The IGUS bearings are further protected by end caps.
Translation is via a Ballscrew Assembly, zero backlash.
Proxxon motor / spindle mount is assembled to the bottom yoke.
Z Axis: Manufactured in the Uk by Marchant Dice Ltd (worldofcnc). Designed for use with our MDL- -BS range of Desktop CNC Machines
Chrome Shafting: WV16(h6) x2pcs Chrome Plated Induction Hardened Anti-corrosion and Precision Ground Round Rails / shafting: http:// /images/Round_Rail%20W.pdf designed for use with our SC__UU housings and LME linear bearings.
Linear Bearings: IGUS. x4pcs Maintainance and Lubrication-free
Ballscrew Assembly: RSW12x4 12mm Right hand thread (D) - (1 revolution = 4.0mm) http:// /images/RSW%20Ballnut.pdf
Motor Mount: Proxxon 20.0mm can also be listed with a Kress 43.0mm motor mount with 90mm centres.
Coupling: SCG25C 6x? Please advise, diameter of your stepper motor spindle?
