3-ton hydraulic box dumper, 48" dump height

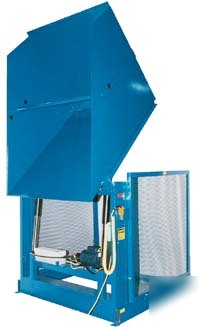

3-TON HYDRAULIC BOX DUMPER, 48" Dump Height
Model Number For This Listing: HBD-6-48
3-TON HYDRAULIC BOX DUMPER, 48' Dump Height
Capacity: 6,000 lbs. , Dump Height: 48" , Level Height: 65" , Rotated Height: 128" , Usable Chute: 51 "W x 50"L , Overall: 67"W x 67"L - Designed for controlled dumping of material from boxes, crates and other types of containers. Lowered height of only 1/2" allows for pallet truck loading and unloading. Retaining bar for use with 24", 30", and 36" high containers (contact factory for other hold-down bar heights). Maximum rotation is 135 . Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control standard. Protective mesh side screens included. Heavy-duty welded steel construction. Painted blue finish.
