Woodeye optimizing system, paul crosscut saws , scanner


Whach video ( ) http:// /watch?v=WARrL5OOLnI It is not mine line, it is similar.
http:// /en/ Components Furniture Windows Construction wood and laminated beam

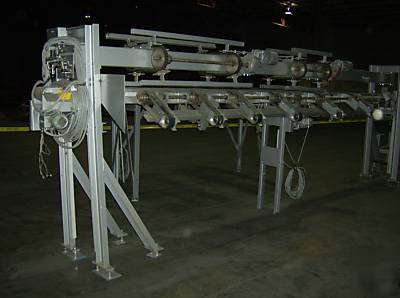

Paul cross cutting line include:
Paul crosscut Saws Model 11 E (Cutting time is 0.19 sec.) Made Germany 1999 Lightly used. 3 pcs.
All conveyors, all controls, pneumatic kickers (air from 6 to 8 bars)
WoodEye Optimizing System (Scanner) It scans all 4 sides of board. Made Sweden 2000 light used.
Lenth of boards from 1828 mm to 4880 mm (from 6' to 16')
width of boards from 47 mm to 150 mm (1.85" x 6")
thikness of board 19mm to 50 mm (2")
Paul automatic length cutting with full optimization line
The fully equipped model 11 E feeds the lumber through a measuring station where its full length is measured and scanned . The board will be optimized according to the data and the cutting list by the MAXI 4.0 control.
The luminescent scanner in the measuring station recognizes the crayon marks on the lumber.
A full optimization of the lumber is only possible on model 11 E. Only if the control knows all the board data the fixed lengths in the cutting list can be combined in such a way that either...
* waste is reduced to a minimum or...
* certain lengths are cut with priority or...
* the lumber is optimized according to different qualities or...
a value optimization across grade lines is carried out
WoodEye measuring, inspecting
WoodEye is a scanner that inspects and optimises sawn and planed timber - at full production speed. 20 years of developmental work and experience from over 200 installations throughout the world provide a guarantee of unrivalled quality and functionality.
One system - three basic designs
WoodEye produces increased profitability
You will be given efficient control of the entire conversion chain. WoodEye optimises the value yield with respect to a large number of parameters simultaneously. This provides the prerequisites for a more consistent quality in every single product range and greater volume, which in turn leads to higher returns. The right quality also allows for optimal pricing. The opportunity to control the quality levels also results in a higher yield and less wastage. For a lot of companies, investing in WoodEye also means that rationalisations can be made in staff levels.
WoodEye produces valuable statistics
As a result of our lengthy collaboration with companies supplying machinery to the woodworking industry, we have developed standardised interfaces for controlling cross-cutting and sorting lines and also trimming mills. Together with sensor systems and computers, they comprise a ready-to-use system.
We have used our knowledge of different types of timber and our experience of various analysis methods to create standardised software packages with very advanced analysis options. Despite this the system is still very easy to use. All the various functions are shown on a well laid-out touch-screen in clear language and with international language options. From here the operator can carry out all necessary commands and also monitor production.
The advanced technology and the advanced computations do not represent a burden for the operator. Instead the main feature of WoodEye is its simplicity and flexibility in all situations: it is simple to introduce into the production line and to put into operation, easy to learn to operate and to use in day to day production, easy to reset for different production runs and simple to expand when the circumstances change.
