Laird tech. emi/rfi shielding 6 strips finger radiation

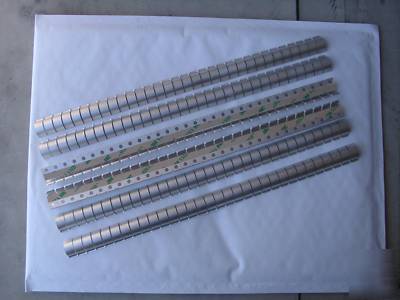

Laird Technologies Beryllium Copper RFI Gasket Finger Strip - 6 pieces (size 300mm X 19mm X 7mm) - P/N 97-538
These versatile gaskets are made from high-performance beryllium copper with Sticky Fingers self-adhesive backing.
They provide an extremely tight, instant bond and are ideal as an all-purpose contact strip for metal cabinets and electronic enclosures,
particularly where space is critical.
Magnetic field shielding effectiveness of these strips has been proven to be >46 dB for a 14 kHz plane wave and 108 dB for a 10 GHz plane wave. When tested per MIL-STD-285 for electromagnetic shielding, these strips showed superior performance under minimum compression. They proved to be especially effective where variations exist in the space to be shielded and in applications that require high shielding performance despite frequent opening.
Full specification and more information in the following link:
http://lairdtech.thomasnet.com/item/all-categories/all-purpose-series/97-538?&plpver=10&origin=keyword&by=prod&filter=0
