25” x 260”cc tos SU63A engine lathe

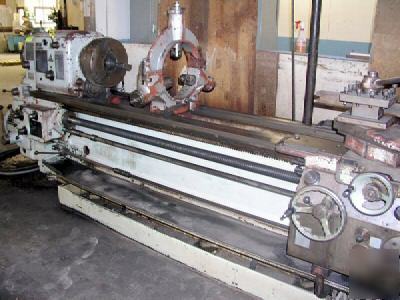

25 x 260 cc TOS SU63A Engine Lathe, S/N 0429588, new 1968
Diameter of tailstock spindle 4
Taper of tailstock spindle No. 6 M.T.
Travel of tailstock spindle 10
2 Ranges spindle speeds (30 steps) 8-1180 RPM
41 Longitudinal feeds .0026-.240 IPR
Thread range Inch 7/16 48 TPI
Swivel compound with Built-in 4-way tool post
Inch/Metric threading with (13) loose change gears
16 Dia. 3-jaw universal chuck with (4) sets of top jaws
15 cap. 3 point roller steady rest
6 cap. 3 point plain steady rest
Multiple 6-station carriage feed stop
Misc. holders, adapters and lathe tooling
25 HP 3/60/220 Volt Motor with control
Approximate Weight: 19,250 lbs
Dimensions: 355 L x 52 W x 64 High
